20mm To 1000mm Width C1100 Copper Foil Strip ASTM Soft For Transformers
Products Description:
| Item | Copper Foil Strip |
| Standard | ASTM, ISO, JIS, BS, DIN |
| Material | C1100/C1220/T2/TP2 |
| Size | Thickness: 0.01mm-2.0mm Width: 20mm-1200mm Length: Coil or As customers' requirement |
| Surface | Mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required |
| Application | Copper foil can be made to do all sorts of drawing and bending stress components, such as manufacturing pins, rivets, gasket, nuts, conduits, the barometer spring, screen, radiator parts, transformers etc |
| Export to | copper foil is mainly exported to the following countries : America, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, UAE |
| Package | Standard export package or as required |
| Price term | EXW, FOB, CIF, CFR, CNF, etc |
| Payment | L/C,T/T,Western Union,etc |
| Certificates | TUV&ISO&GL&BV, etc |
| Contact | If you have any question, please feel free to contact us We promise your inquiry or requirements will get prompt attention |
Chemical Composition:
| Chemical composition(%) |
| Grade | Cu | P | Sn | Zn | Ni | Pb | Fe | Al | Si | Mg | Ag | Be | Cd |
| C1100 | 99.99 | 0.0009 | / | 0.0001 | 0.002 | 0.0013 | 0.001 | / | / | / | / | / | / |
Physical Properties:
| Physical Properties |
| Grade | Density g/cm3 | Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃ | Electrical conductivity IACS%(20℃) | Thermal Conductility W/(m*k) | Modulus of elasticity (KN/mm2) |
| C1100 | 8.94 | 17.7 | 101min | 391 | 118 |
Mechanical Properties:
| Mechanical Properties |
| Grade | State | Tensile strength(RM,Mpa) | Yield Strength(Rp0.2 Mpa) | Elongation |
| C1100 | 1/2H | 255-315 | -- | 75-120 |
| H | 290 min | -- | 80 |
Application:
As a result of the high percentage of impurities, C1100 O copper foil strip with high electrical and thermal conductivity, durability and malleability is widely used in transformers, reactors, filters and mutual inductors.
The copper foil products of our company with high purity, fine, the oxygen content is very low. There is no pores, trachoma, loose, conductive performance is excellent, the electrical erosion of the mold surface precision is high, the heat treatment process, the electrode without direction, suitable for fine, fine to play, with good thermal channel processing, ductility, corrosion resistance and weatherability. Have good conductivity, thermal conductivity, corrosion resistance and processing performance, can also be used for welding and brazing.

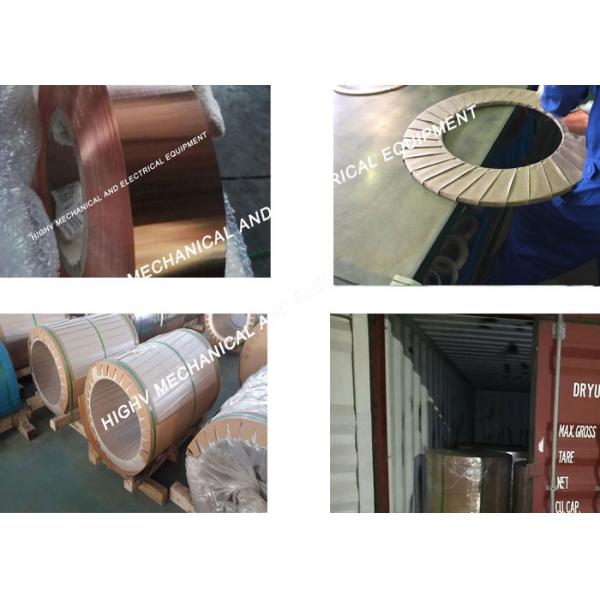

Packaging:
- Our company has professional team and adopts developed packaging technology and packaging style to ensure the packaging quality.
- We have three types of packaging, eye to sky, eye to wall and cases packaging. Fumigation-free of wood pallets, corrugated paper, paper angle protector, PVC film and desiccant.
Additional Information:
Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet, then put in container) or customerized.
Grate car is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the
product I.D. and quality information.
- 20 ft - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ About 23MTS
- 40 ft - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ About 27MTS
- 40 ft - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Hight) ------ About 27MTS
The Reason Why You Choose us:
- ISO System
- TUV and BV Audited company .
- Industry experience over 20 years.
- Management Systems-Internal Software
- Shipment of goods -More than 50 countries worldwide.
- We have the most convenient transport and prompt delivery.
- We offer competitive price with best service .
- We have high technical production line with top quality products.
- We have win high reputation based on best quality products.
